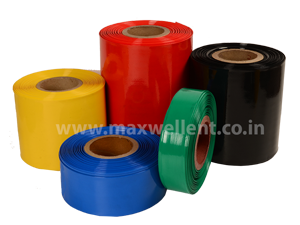

Sleeve for Bus Bar

We are counted among the well-reputed firm for manufacturing and offering an extensive series of PVC Heat Shrink Sleeves to our esteemed customers. Furthermore, we offer this product at nominal prices.

Maxwell PVC Heat Shrinkable Sleeve provides the perfect electrical insulation for Bus bars of low tension systems in control panels & switchgear systems. Bus bar sleeves are an excellent latest modern technology for insulation compared to age old conventional method.

Our Product is ROHS Compliance and available from 17 mm width to 250 mm width and in thickness ranging from 80 microns to 500 microns for the complete range of Bus Bar Sleeve which covers the variations as required by local & export requirements. Standard available Colours are Red, Yellow, Blue, Black & Green, we can also supply brown, gray & white colour Bus bar sleeve to fulfill various requirements.

Maxwell sleeve provides perfect insulation to bus bar of low tension systems in control panels and switchgear systems.

• STANDARD COLORS - Red, Yellow, Blue, Black, Green, Brown, Grey(all-opaque)
• RANGE AVAILABLE - Width : 17 mm to 250 mm
• Thickness : 0.17 mm to 0.5 mm
• TOLERANCES :
• Width : ± 1 mm, Thickness : ± 0.02 mm.up to 0.2 mm., ± 0.05 mm.above 0.25 mm
• SHRINK RATIO :
• Machine Direction : 10% ± 5%
• Transverse Direction : 45% ± 5%
• Shrink Temperature : 120°C
• Standard Length : 50 / 100 meters
• Shelf Life : 6 months, stored below 25°C

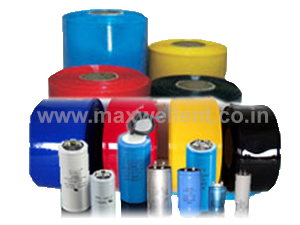

Sleeve for Capacitor

Maxwell sleeve for Electrolytic Capacitors are used externally for necessary insulation to the capacitors. A variety of sleeve from very small and narrow ones to broad ones are produced as per customer’s requirement. It is available in various colors.

• ADVANTAGES - Physical properties such as tensile strength, elongation at break , water absorption are guaranteed. Electrical properties such as insulation are guaranteed. Improvement on impact resistance is made so that the sleeved condensers are not broken when fall from heights. It is available in various colors.
• RANGE AVAILABLE - Width : 10 mm to 150 mm
• Thickness : 0.07 to 0.2 mm
• TOLERANCES :
• Width : ± 1 mm, Thickness : ± 0.02 mm
• SHRINK RATIO :
• Machine Direction : 15% ± 5%
• Transverse Direction : 45% ± 5%
• Shrink Temperature : 80°C to 150°C
• Standard Length : 50 / 100 / 200 meters

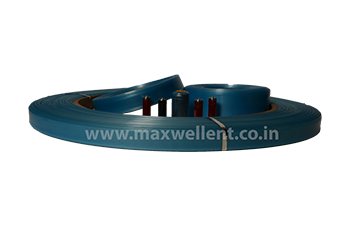

Sleeve for Dry Cell Batteries

Maxwell sleeve is widely used for insulation of Dry Cell Batteries. It is high quality sleeve which can meet in particular speed of automatic sleeve applicator machines. For quality stability, particular attention is given to chemical , thermal and electrical resistance. Maxwell Sleeve is used internally for making the battery cells leak proof. It is also used externally for twin or multiple pack of battery Cells

• ADVANTAGES - Good insulation is imparted to Battery Cells. Efficiency of Battery Cell is increased as leakage is prevented. Protection against damage due to leakage of corrosive chemicals from Cell to expensive equipments in which Batteries are used.
• RANGE AVAILABLE - Internal use – UM1, UM2, UM3, UM3d (D, C AA & AAMJ) or R-20, R-14, R-6 & R-6 Heavy Duty
• TOLERANCES :
• Width : ± 0.5 mm, Thickness : ± 0.01 mm
• SHRINK RATIO :
• Machine Direction : 15% +/- 5% depending upon sizes .
• Transverse Direction : 50% +/- 3% depending upon sizes.
• Standard Length : 500 / 750 meters.

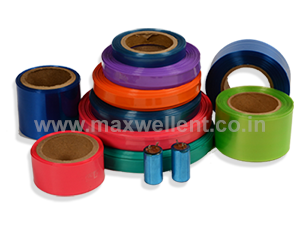

PVC HEAT SHRINK SLEEVES

We are counted among the well-reputed firm for manufacturing and offering an extensive series of PVC Heat Shrink Sleeves to our esteemed customers. Furthermore, we offer this product at nominal prices.

Maxwell PVC Heat Shrinkable Sleeve provides the perfect electrical insulation for Bus bars of low tension systems in control panels & switchgear systems. Bus bar sleeves are an excellent latest modern technology for insulation compared to age old conventional method.

Our Product is ROHS Compliance and available from 17 mm width to 230 mm width and in thickness ranging from 80 microns to 400 microns for the complete range of Bus Bar Sleeve which covers the variations as required by local & export requirements. Standard available Colours are Red, Yellow, Blue, Black & Green, we can also supply brown, gray & white colour Bus bar sleeve to fulfill various requirements.

• FEATURES :
• Strong structure
• Easy to use
• Durability
• Affordable costs

• TOLERANCES :
• Width : ± 1 mm
• Thickness : ± 0.02 mm.up to 0.2 mm., ± 0.05 mm above 0.25 mm
• Break down Voltage : 11 kv

• SHRINK RATIO :
• Machine Direction : 10% ± 5%
• Transverse Direction : 45% ± 5%
• Shrink Temperature : 120°C
• Standard Length : 50 / 100 meters
• Shelf Life : 6 months, stored below 25°C

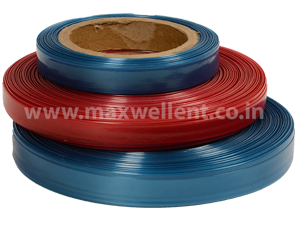

REFRIGERATOR GRADE SLEEVE

We have carved niche in the market by offering a broad series of Refrigerator Grade Sleeve. Professionals make these products using the quality assured material keeping in mind the set standards of industry.

• FEATURES :
• Durable nature
• Longer life
• Dimensional accuracy
• Excellent in quality
• Made as per industry rakes

• Physical & Electrical Properties :
• Tensile Strength : 300kgs/cm
• Water Absorption : Less than 0.70%
• Flammability : Self-Extinguishing
• Tear Strength : 75kgs/cm
• Type : Creased Type

Maxwell PVC Heat Shrink Sleeves (Refrigerator Grade)

Standard Length (Roll) : 100 / 200 meters

• Standard Colours :
• Opaque : Black, Red, Blue, Yellow etc.
• Transparent : Blue, Yellow, Red, Green & Clear etc.

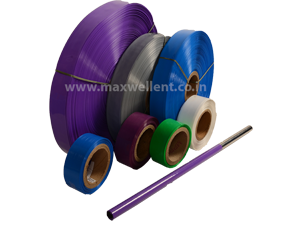

SLEEVE FOR WIPER ROD

Maxwell Wiper Rod Sleeve is Best quality sleeve for wiper rod, Manufactured as per clients requirement in varioue sizes & colours, rolls are available in 200,300,500 Mtrs.

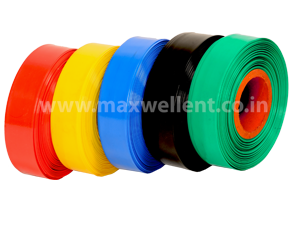

Bus Bar Heat Shrink Sleeve

We are counted among the well-reputed firm for offering an extensive series of Bus Bar Grade Heat Shrink Sleeve to our esteemed customers. Furthermore, we offer this product at nominal prices.

Maxwell Bus Bar Grade Heat Shrink Sleeve provides the perfect electrical insulation for Bus bars of low tension systems in control panels & switchgear systems. Bus bar sleeves are an excellent latest modern technology for insulation compared to age old conventional method.used for Electrical industry.

Our Product is ROHS Compliance and available from 17 mm width to 230 mm width and in thickness ranging from 80 microns to 400 microns for the complete range of Bus Bar Sleeve which covers the variations as required by local & export requirements.

Standard available Colours are Red, Yellow, Blue, Black & Green, we can also supply brown, gray & white colour Bus bar sleeve to fulfill various requirements.

• FEATURES :
• Strong structure
• Easy to use
• Durability
• Affordable costs

• Tolerances :
• Width : ± 1 mm
• Thickness : ± 0.02 mm.up to 0.2 mm., ± 0.05 mm above 0.25 mm
• Break down Voltage : 11 kv

• Shrink Ratio :
• Machine Direction : 10% ± 5%
• Transverse Direction : 45% ± 5%
• Shrink Temperature : 120°C
• Standard Length : 50 / 100 meters
• Shelf Life : 6 months, stored below 25°C.

Product Details :

Standard Length (Roll) : 100 / 200 meters

• Standard Colours :
• Opaque : Black, Red, Blue, Yellow etc.
• Transparent : Blue, Yellow, Red, Green & Clear etc.

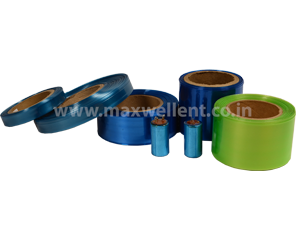

CAPACITOR HEAT SHRINK SLEEVES

Maxwell sleeve for Electrolytic Capacitors are used externally for necessary insulation to the capacitors. A variety of sleeve from very small and narrow ones to broad ones are produced as per customer’s requirement. It is available in various colors.

• Range Available :
• Width 10mm to 150mm
• Thickness 0.07 to 0.4mm

• Tolerances :
• Width +/-1mm
• Thickness +/-0.02mm upto 0.20mm
• +/-0.05mm above 0.25mm

• Shrink Ratio :
• Machine Section - 5% - 8% & 8% - 12% (as per customers)
• Transverse Section - 45% +/-5%

BUS BAR GRADE FILM

We are the leading company, actively occupied in Manufacturing Bus Bar Grade Film, These are made from the best quality material keeping in mind the set parameters of industry.used for Electrical industry.

Maxwell Bus Bar Grade Film provides perfect insulation to busbar of low tension systems in control panels and switchgear systems.

Standard Color : Red, Yellow, Blue, Black,Green (all-opaque)

• Features :
• Affordable prices
• Longer life
• Easy to use
• ROHS Sleeve

• Range Available :
• Width : 17 mm to 230mm
• Thickness : 0.17 mm to 0.4 mm

• Tolerances :
• Width : ± 1 mm.
• Thickness : ± 0.02 mm.up to 0.2 mm., ± 0.05 mm.above 0.25 mm

• Shrink Ratio :
• Machine Direction : 10% ± 5%
• Transverse Direction : 45% ± 5%
• Shrink Temperature : 120°C
• Standard Length : 50 / 100 meters
• Shelf Life : 6 months, stored below 25°C
